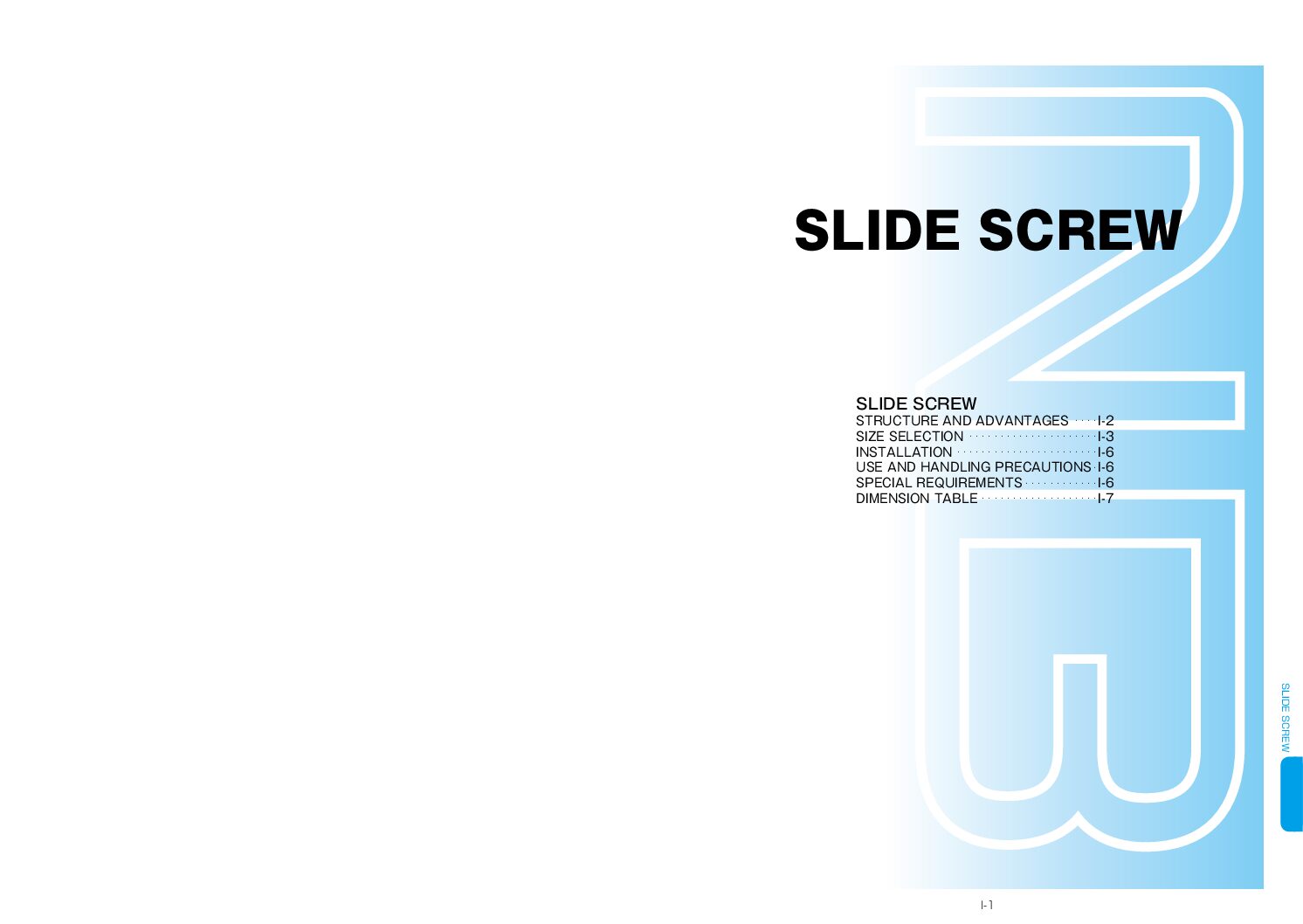

Nippon Bearing – Slide Screw

Slide screws combine a lead screw with an integrated nut and guidance concept for compact positioning stages. The catalog explains lead choices, backlash control and efficiency so you can balance speed, resolution and holding force.

Dimensional tables are paired with mounting recommendations for supports and end‑machining, together with notes on permissible radial and axial loads on the nut. Options for anti‑backlash and low‑noise operation are summarized.

Lubrication choices and relubrication intervals are explained for continuous duty and intermittent indexing; material options are identified for corrosive environments.

Application examples—format adjustment, sensor positioning, light‑duty pick‑and‑place—illustrate how to translate catalog data into dependable mechanisms with predictable life.
