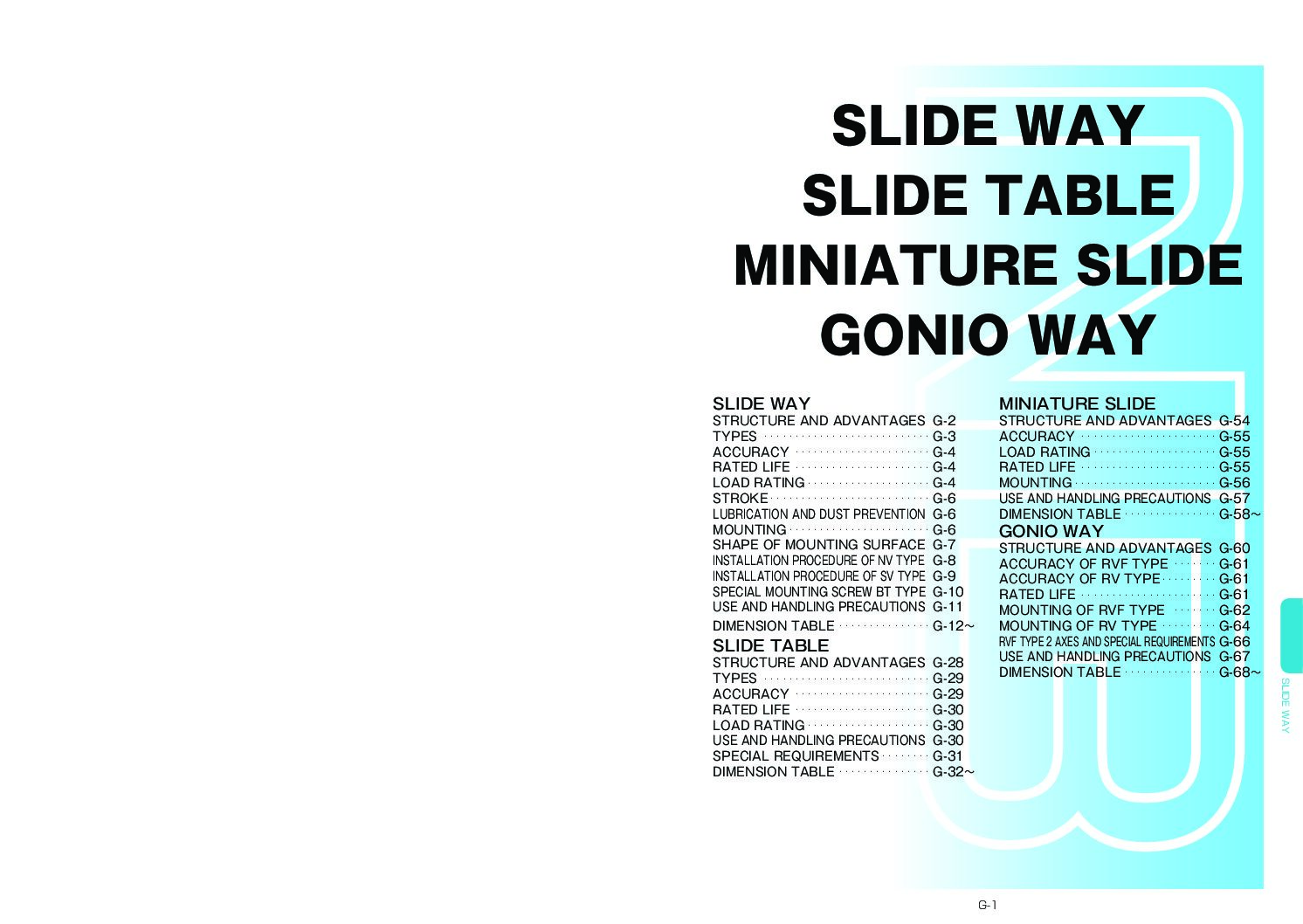

Nippon Bearing – Slide Way Gonio Way

Slide Way and Gonio Way elements provide rigid, precise linear and angular guidance where compactness and vibration damping are important. The catalog introduces way geometries, gib adjustment and preload setting to achieve smooth movement with minimal stick‑slip.

Dimensional data is accompanied by recommendations for scraping or surface finishing, lubrication grooves and wiper arrangements that preserve long‑term straightness. Guidance on mating materials helps control wear and thermal drift.

For angular stages, the text explains center‑of‑rotation placement, backlash control and practical limits on speed and resolution.

Mounting sections show datum usage, bolt patterns and inspection checks so the realized accuracy matches the specified class once the system reaches operating temperature.
