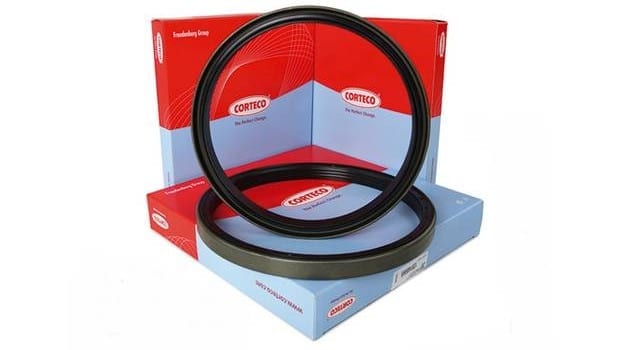

The 12012095B CORTECO Shaft Oil Seal is designed to provide effective sealing solutions for rotating shafts, essential for preventing the leakage of lubricants and the ingress of contaminants. With dimensions of 65 mm inner diameter, 85 mm outer diameter, and 13 mm width, this oil seal is suitable for various industrial applications. Manufactured by CORTECO, a recognized name in sealing technology, this product is particularly effective in high-performance environments where reliability is crucial.
Technical specifications
| Specification | Value |
|---|---|
| Bore diameter (d) | 65 mm |
| Outer diameter (D) | 85 mm |
| Width / Thickness (B) | 13 mm |
| Weight | 0.045 kg |
| Operating temperature range | -20 / +120 °C |
| Ring material | FPM (Fluoroelastomer) |
| Sealing type | B1SLSFRD |
Technical advantages
The 12012095B CORTECO Shaft Oil Seal offers several technical advantages tailored for industrial applications:
- Operating temperature range of -20 to +120 °C, suitable for diverse environments.
- Manufactured from FPM (Fluoroelastomer), providing excellent resistance to oils and chemicals.
- Designed for effective sealing against dirt and moisture ingress, enhancing operational reliability.
- Compact design allows for installation in tight spaces, facilitating versatile applications.
- Low friction characteristics help in reducing wear on both the seal and the shaft.
Typical applications
This oil seal is widely used across various sectors due to its effective sealing capabilities:
- Automotive industry (gearboxes, differential assemblies)
- Agricultural machinery (tractors, harvesters)
- Industrial pumps (centrifugal pumps, gear pumps)
- Construction equipment (excavators, bulldozers)
- Marine applications (stern drives, engine seals)
Availability and ordering
Eurobearing.eu specializes in providing mechanical industrial components with fast availability for the 12012095B CORTECO Shaft Oil Seal. For bulk quantities, you can request a quotation or add the product directly to your cart for immediate purchase.
