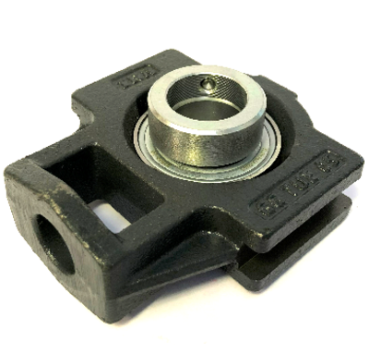

The Housing + Bearing RTUEY40 from INA is a precision-engineered component designed for industrial applications requiring robust support and alignment. With dimensions of 40 mm bore diameter, 141 mm outer diameter, and 115 mm width, this housing and bearing unit is suitable for various mechanical assemblies. The RTUEY40 is typically used in conjunction with machinery that demands reliable operation under varying loads, making it an essential part of industrial equipment.
Technical specifications
| Specification | Value |
|---|---|
| Bore diameter (d) | 40 mm |
| Outer diameter (D) | 141 mm |
| Width / Thickness (B) | 115 mm |
| Weight | 2.45 kg |
| Basic dynamic load rating (C) | 57 kN |
| Basic static load rating (C0) | 61 kN |
| Limiting speed | 1300 rpm |
| Cage type | Pressed steel |
| Shielding / Sealing | 2RS |
| Operating temperature range | -20 / +100 °C |
| Ring material | 100Cr6 chrome steel |
| Factory lubrication | Lithium grease |
| Precision class | P0 |
| Internal clearance | CN |
Technical advantages
The RTUEY40 offers several key technical advantages that enhance its performance in industrial applications:
- Basic dynamic load rating (C) of 57 kN for handling substantial loads during operation.
- Basic static load rating (C0) of 61 kN, ensuring stability under stationary conditions.
- Limiting speed of 1300 rpm, suitable for various rotating applications.
- Pressed steel cage design, optimized for effective bearing operation and longevity.
- Operating temperature range of -20 to +100 °C, allowing use in diverse environments.
- Factory lubrication with lithium grease, ensuring smooth operation right out of the box.
Typical applications
The Housing + Bearing RTUEY40 is widely utilized across several specific industries and machine types, including:
- Construction machinery (excavators, compactors, and cranes)
- Textile manufacturing (spinning and weaving machines)
- Agricultural equipment (tractors, harvesters, and tillers)
- Conveyor systems (belt conveyors and roller conveyors)
- Industrial automation (robotic arms and assembly lines)
Availability and ordering
Eurobearing.eu is your specialized B2B supplier for the Housing + Bearing RTUEY40 (SKU: RTUEY40-INA). We ensure fast availability and can accommodate requests for bulk quantities. Add to cart or request a quotation today to secure your industrial components.
