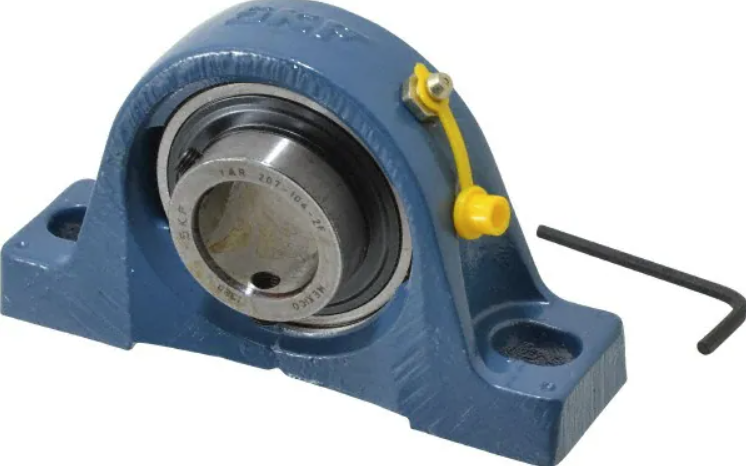

The SYH 1.7/16 FM Housing + Bearing from SKF is an expertly engineered 2 Bolt Cast Iron Pillow Block designed specifically for rigorous industrial applications. With precise dimensions of 36.513 mm bore diameter, 160 mm outer diameter, and 51.9 mm width, this unit is ideal for supporting rotating shafts in various machinery. Known for its robust construction, the SKF SYH1716FM-SKF ensures optimal performance in environments requiring reliable mechanical components.
Technical specifications
| Specification | Value |
| Bore diameter (d) | 36.513 mm |
| Outer diameter (D) | 160 mm |
| Width (B) | 51.9 mm |
| Basic dynamic load rating (C) | 24.5 kN |
| Basic static load rating (C0) | 15.1 kN |
| Cage type | Pressed steel |
| Shielding / Sealing | Open |
| Operating temperature range | -20 / +100 °C |
| Ring material | Chrome steel 100Cr6 |
| Factory lubrication | Lithium grease |
| Precision class | P0 / ABEC-1 |
Technical advantages
The SKF SYH 1.7/16 FM Housing + Bearing offers several technical advantages that make it suitable for demanding applications:
- Capable of handling dynamic loads up to 24.5 kN, ensuring stability under heavy-duty operations.
- Constructed from durable chrome steel 100Cr6, designed for a rolling-contact fatigue life >10^7 cycles.
- Operates efficiently within a temperature range of -20 to +100 °C, suitable for diverse environments.
- Open design allows for minimal maintenance and easy inspection, reducing downtime.
- Standard P0 precision class provides reliable performance without the need for additional adjustments.
Typical applications
This SKF pillow block is suited for a variety of industrial sectors and machine types, including:
- Conveyor systems (belt conveyors, chain conveyors)
- Pump assemblies (centrifugal pumps, gear pumps)
- Material handling equipment (cranes, hoists)
- Textile machinery (spinning machines, weaving looms)
- Food processing equipment (mixers, grinders)
Availability and ordering
Eurobearing.eu is a specialised B2B supplier offering fast availability of the SKF SYH1716FM-SKF. Customers can easily add this product to their cart for immediate purchase or request a quotation for bulk quantities. Visit Eurobearing.eu today to secure this robust mechanical component for your industrial needs.
