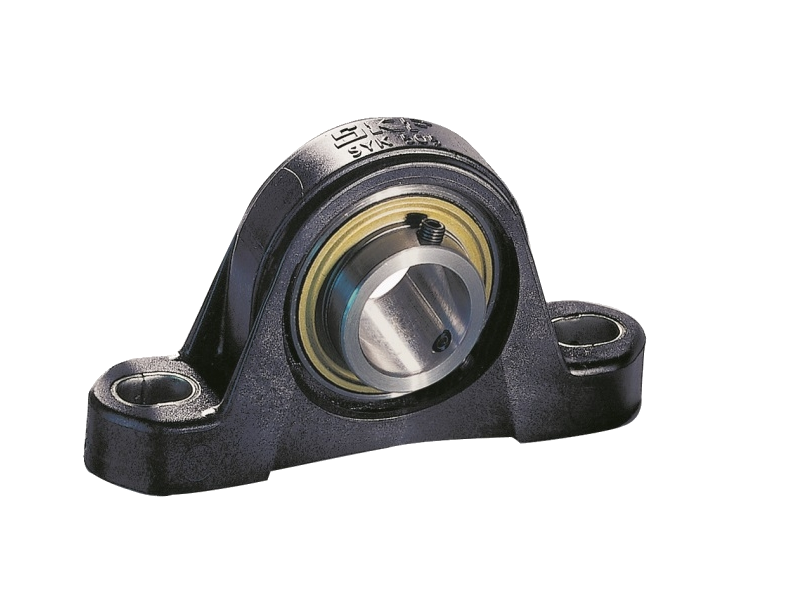

The SYK 25 TF Housing + Bearing 25X134X37.8 from SKF is a robust 2-bolt cast iron pillow block unit designed for various industrial applications. With a bore diameter of 25 mm, an outer diameter of 134 mm, and a width of 37.8 mm, this housing and bearing assembly provides strong support for rotating shafts in demanding environments. Its durable construction makes it suitable for use in sectors where reliable performance is essential, ensuring that machinery operates smoothly and efficiently.
Technical specifications
| Specification | Value |
|---|---|
| Bore diameter (d) | 25 mm |
| Outer diameter (D) | 134 mm |
| Width / Thickness (B) | 37.8 mm |
| Weight | 2.4 kg |
| Basic dynamic load rating (C) | 20.5 kN |
| Basic static load rating (C0) | 13.5 kN |
| Limiting speed | 6,000 rpm |
| Cage type | Ppressed steel |
| Shielding / Sealing | 2RS |
| Operating temperature range | -20 / +120 °C |
| Ring material | Chrome steel 100Cr6 |
| Factory lubrication | Lithium grease |
| Precision class | P0 |
| Internal clearance | CN |
Technical advantages
The SYK 25 TF Housing + Bearing offers several technical benefits that enhance its performance in various applications:
- Dynamic load rating of 20.5 kN, ensuring robust support under operational stresses.
- Limiting speed of 6,000 rpm, suitable for moderate-speed applications.
- Operating temperature range from -20 °C to +120 °C, allowing for versatility in different environments.
- Factory lubrication with lithium grease, providing effective protection against wear.
- 2RS sealing type, offering IP-rated protection against dust and moisture ingress.
- Pressed steel cage design, promoting optimal roller spacing for reduced friction.
Typical applications
The SYK 25 TF Housing + Bearing is widely used in various industrial sectors, including:
- Textile machinery (spinning frames, weaving looms)
- Food processing equipment (conveyor systems, mixers)
- Automotive industry (electric motors, gearboxes)
- Agricultural machinery (tractors, harvesters)
- Material handling systems (pallet jacks, forklifts)
Availability and ordering
<p Eurobearing.eu is your specialized B2B supplier for the SYK 25 TF Housing + Bearing, ensuring fast availability of this component. You can easily request a quote for bulk quantities or add the product directly to your cart for immediate purchase.
