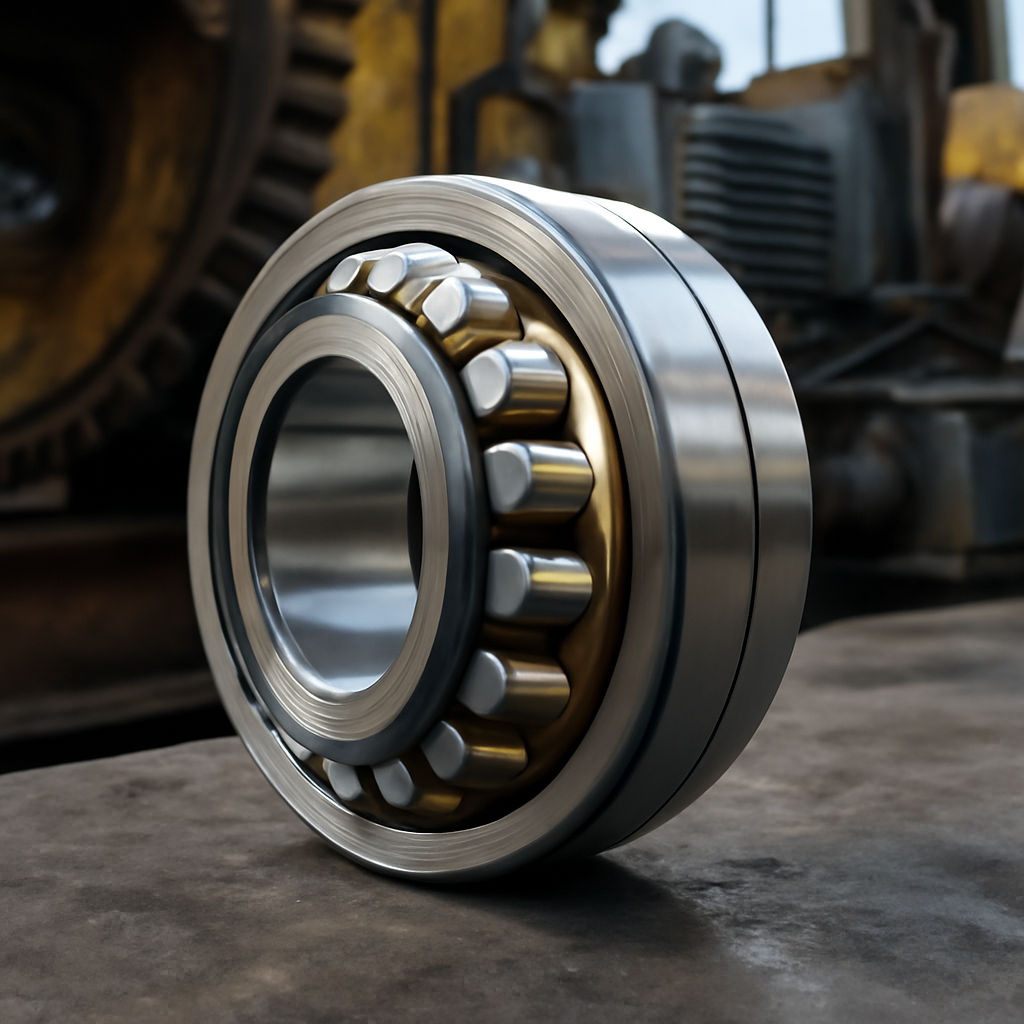

Spherical Roller Bearings: Heavy-Load Applications

Spherical roller bearings are the heavy-load workhorse of industrial machinery. Two rows of barrel-shaped rollers running on a common spherical outer raceway deliver high radial load capacity, significant axial load capacity in both directions, and the unique ability to compensate shaft misalignment without performance penalty. This guide walks through where they are specified, how to choose them, and the application traps to avoid.

1. The geometry

The defining feature is the spherical outer raceway. Each row of rollers makes contact along this sphere, allowing the inner ring and rollers to tilt relative to the outer ring without binding. Misalignment of up to 1-2° between shaft and housing is absorbed without performance loss.

2. The standard series

22000 series: medium width, moderate dimension series. The most common.
23000 series: heavy width, higher load capacity.
24000 series: ultra-wide for very heavy radial load applications.

SKF Explorer, FAG X-life, NSK High-Performance equivalents add 20-40% calculated life over the standard range.

3. Where they are specified

Industrial fans and blowers: heavy radial load plus thermal expansion.
Conveyor pulleys: heavy radial load, possible misalignment from frame deflection.
Vibrating screens and shakers: heavy combined loads plus shock.
Heavy-duty pumps: shaft thrust plus radial load.
Papermaking machinery: high temperatures, heavy loads.
Marine propulsion shafts: heavy load, possible misalignment.
Wind turbine main shaft: very large variants, the bearing under the most aerodynamic load.
Mining and crushing equipment: heavy duty plus shock.

4. Selection variables

4.1 Bore size and series

Choose by required load capacity from the manufacturer catalogue. Verify against speed limits.

4.2 Cage type

Steel cage (J, JA): standard general-purpose.
Brass cage (CA, MA): heavy industrial duty, high-temperature service.
Polyamide cage (CC): lower-speed, moderate temperature, quieter operation.

4.3 Bore type

Cylindrical bore: standard. Inner ring is interference-fitted on the shaft.
Tapered bore (suffix K): for mounting via adapter sleeve, common on large applications.

4.4 Clearance

C2: less than normal. Tight fits, lower speeds.
Normal: most general applications.
C3: most common for moderate-to-high temperature service.
C4: high temperature continuous, heavy thermal cycling.

5. Lubrication

Grease: NLGI 2-3, high-viscosity base oil for heavy load.
Oil: for high-speed or hot applications, oil bath or circulation.
Quantity: spherical roller bearings need more grease than ball bearings of equivalent size due to the larger internal volume.

6. Sealing

Most heavy industrial spherical roller bearings are open or shielded — the application requires the bearing to be mounted in a housing that provides the sealing. SKF and FAG offer sealed (-2RS) variants for medium sizes used in moderate-duty applications.

7. Mounting considerations

The inner ring is typically interference-fit on the shaft.
For shafts above ~70 mm, mounting via adapter sleeve (tapered bore variant) is standard.
Heat the bearing for installation; never hammer or press through the rollers.
Document the clearance reduction after mounting — interference fit reduces internal clearance.

8. Common mistakes

Specifying normal clearance for high-temperature service — bearing seizes as inner ring expands.
Using polyamide cage above its temperature limit.
Insufficient grease quantity at re-lubrication.
Not accounting for the misalignment compensation when designing the mounting — the bearing can absorb misalignment but the surrounding components may not.

9. Cross-reference notes

SKF, FAG, NSK, NTN, TIMKEN spherical roller bearings cross-reference cleanly on standard sizes. The premium ranges (Explorer, X-life, HP) have proprietary internal geometry; cross-substitution with standard equivalents is possible but loses the enhanced life characteristics.

Conclusion

Spherical roller bearings remain the dominant choice across heavy industrial applications. Their combination of high load capacity, self-alignment, and proven reliability makes them a default specification — and the engineering investment from the major manufacturers continues to push performance upward.

Industry consolidation effects in 2026

The bearing industry consolidation period is reshaping the European supplier landscape. The NSK and NTN Memorandum of Understanding (signed 12 May 2026, target closing October 2027) creates a combined entity that will challenge SKF and Schaeffler for the global #1 position. SKF’s separation of its Automotive business under a new three-segment structure (Bearing Solutions, Specialized Industrial Solutions, Automotive) sharpens segment focus. Schaeffler’s Yinchuan capacity expansion doubles standard catalogue capacity, normalising lead times that have been intermittently long since 2022. SKF’s G-Tech Instruments acquisition (March 2026) deepens condition monitoring capability.

For European industrial customers, these dynamics translate into specific operational implications. Multi-supplier qualification becomes more important across critical SKUs. Framework agreement negotiations should incorporate the consolidation context with substitution provisions and SKU continuity guarantees. Pricing leverage exists during the competitive window before NSK + NTN integration closes; framework agreements signed during 2026 lock favourable terms through the transition period.

Smart bearing platforms and procurement implications

The smart bearing transition is reshaping the broader supplier relationship. Every major manufacturer (SKF Insight, Schaeffler OPTIME, NSK SAT, NTN smart bearing platforms) has built or acquired platform capability. The integrated offering combines instrumented bearings, cloud analytics, AI-based anomaly detection, prescriptive workflow integration, and integrated services. For procurement leadership, the smart bearing decision involves more than the bearing — it involves the broader reliability ecosystem.

For European industrial customers, qualifying smart bearings on critical applications during 2026 positions the organisation for the post-2028 industry structure where smart bearings become standard rather than premium. The decision criteria expand beyond bearing specification and pricing to include platform capability, integration with existing CMMS and ERP, data ownership terms, and roadmap visibility.

Condition monitoring economic case

The deployment economics for IoT-based condition monitoring in 2026 are particularly favourable. Sensor hardware costs (under $50 per node) have collapsed 85% since 2019. Cloud platforms have matured into turnkey SaaS offerings. AI analytics adds capability that human analysts alone cannot match. Documented payback periods converge on 6-18 months for typical European mid-size industrial plant deployments.

For a typical mid-size plant with 50-100 critical assets, deployment cost runs €15,000-30,000 first-year capex plus €10,000-20,000 annual recurring. Documented savings: 30-50% reduction in unplanned downtime, typically valued at €100,000-500,000 annually. The capital justification is straightforward; the organisational change to operate alongside the technology is the actual implementation challenge.

The strategic procurement posture

For European industrial procurement leadership in 2026, the strategic posture distils to active engagement rather than passive reaction. Build supplier substitution agility across critical SKUs. Lock framework pricing where leverage exists during the competitive window. Invest in condition monitoring capability that delivers documented ROI. Qualify smart bearings on critical applications. Build master data discipline that supports informed substitution decisions during supply disruptions.

The cumulative effect of these procurement disciplines compounds across years. Organisations that build the capability now position themselves to outperform through the industry transition; those that delay will be implementing in 2028 against competitors who already have the foundation in place. The strategic window for proactive positioning is open through 2026 with diminishing returns thereafter.

Strategic procurement actions for H2 2026

For European industrial procurement teams in 2026, the practical action list during H2 2026 distils to several converging priorities. First, multi-supplier qualification on critical SKUs supports substitution agility through the consolidation period. The combined NSK + NTN entity will reshape supply dynamics post-2027; building qualified alternatives now provides operational protection regardless of how the integration unfolds. Second, framework agreement renegotiation captures pricing leverage that exists during the competitive window before consolidation closes. Multi-year locks on standard catalogue ranges deliver predictable cost discipline.

Third, condition monitoring deployment delivers documented ROI within 6-18 months for typical European mid-size industrial plants. The technology has matured; the economic case is clear; the implementation pathway is well-understood. Fourth, smart bearing qualification on critical applications positions the organisation for the post-2028 industry structure where smart bearings become standard. Fifth, master data discipline (clean bearing reference data, accurate cross-references, documented engineering equivalence) supports informed substitution decisions during the consolidation period.

The 2026 supplier ecosystem dynamics

The European bearing supplier ecosystem in 2026 is undergoing one of the most active restructuring periods in three decades. SKF’s restructuring around three reporting segments (Bearing Solutions, Specialized Industrial Solutions, Automotive) sharpens strategic focus. Schaeffler’s Yinchuan capacity expansion doubles standard catalogue capacity. NSK and NTN are integrating under a joint holding company target closing October 2027. JTEKT (Koyo) faces strategic positioning pressure from the broader consolidation. TIMKEN continues independent strategic direction in heavy industrial.

For European industrial customers operating in this environment, the supplier landscape that emerges in 2027-2028 will be materially different from 2025. Procurement strategy needs to evolve in parallel: multi-supplier qualification with engineering equivalence, framework provisions that anticipate consolidation effects, smart bearing platform commitments aligned with long-term reliability strategy, and condition monitoring infrastructure that supports data-driven supplier engagement. The investments made during 2026 set the procurement foundation for the coming decade.

The operational reality for European industrial customers

For European industrial customers operating in 2026, the bearing supply environment requires active management rather than passive procurement. Multi-supplier qualification, framework agreement renegotiation, condition monitoring deployment, smart bearing platform qualification, and master data discipline are all converging priorities. The strategic window for proactive positioning is open through 2026 with diminishing returns thereafter.

The cumulative effect of disciplined execution across these priorities compounds across years. Organisations that build the capability now position themselves for the post-2028 industry structure where smart bearings, condition monitoring, and integrated reliability services become standard rather than premium. The companies that wait will face higher capability gaps in 2028 against competitors who already have the foundation in place.
